For sale New SciAps Z-902C+ Premium LIBS Analyzer with affordable price USD $13900.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


The world’s first handheld analyzer to deliver carbon content just got better. SciAps Z-902 Carbon is the key to rock-solid, in-field analysis for alloys. Confirm alloy type and grade 300 series stainless into L, H, and S series. Determine carbon equivalents for welding. Perform material verification pre- and post-fabrication.

The key to rock-solid, in-field carbon analysis for alloys.

- Identification of stainless steel and low alloy steels, including carbon analysis down to 70 ppm and instant CE (carbon equivalents) calculations.
- Powerful laser, onboard argon purge, and high-resolution spectrometer are built for carbon.
- Narrow profile for accessing the tightest spaces, aerospace-grade aluminum body for improved performance in high ambient temperatures, and re-designed user interface. The most usable platform on the market, at only 4.35 lbs. (1.97 kg).

Spectrometer range 190 nm – 420 nm. Includes a second, dedicated spectrometer for superior resolution in the 190 – 230 nm range for carbon.

Handheld LIBS analyzers are instruments used to determine the elemental composition of materials. LIBS is an acronym for the analytical technique Laser-Induced Breakdown Spectroscopy.


PMI and NDT
Confirm alloy type and grade 300 series stainless steels into L, H, and S series. Carbon equivalent for welding. Material verification pre- and post-fabrication. Validating mill test reports. Material verification in chemical plants and refineries. Re-rating vessels.

Pipeline integrity management
Grading. Determining carbon equivalents. Validating MTRs.

Steel production
Screen incoming scrap material. In-process quality control. Resolving material mix-ups. Rapid screening of material at EAF for heat compliance.


Features:

LIBS Sensor - Advanced spectrometer design for high resolution and wide range.

Internal-Camera - Precise targeting of analysis location

Macro-Camera - Photo documentation of samples, reading barcodes and QR codes

Report Generation - Full-featured, with available cloud data management and reporting

Narrow Snout - Tapered for welds or difficult-to-acces test locations

Laser Safety Sensor - Patented sample sensor allows Class 1 operation, subject to LSO approval

Intuitive Android - Android operating system, with app based software

High Resolution Display - Rear-facing display for easy viewing

Rugged Metal Body - Maximum durability and minimal service costs.



Applications:

- Oil & Gas
- Chemical Refineries
- Industrial Manufacturing
- Fabrication process
- Power generation
- Shipbuilders
- Steel makers
- Scrap processing/Recycling


Specifications:

Weight :  4.35 lbs. (1.97 kg) with battery

Dimensions : 10.75 x 2.875 x 8.625 inches

Display : 2.7′′ high-brightness, color touchscreen, readable in all lighting conditions. Rear-facing display for easy results viewing.

Power : On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.

Processing : Electronics ARM Quad Cortex -A53 1.2 GHz Memory: 2 GB LPDDR3, 16 GB eMMC

Data Storage : Results storage: 32 GB SD

Connectivity : Built on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C to connect to virtually any information management system.

Sample Viewing : Integrated camera and laser target indicator for viewing sample before and during analysis for proper sample alignment. Includes second “macro camera” for scanning QR or barcodes and for photo-documentation and report generation.

Laser Raster : On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.

Atmosphere : SciAps proprietary Opti-Purge provides an inert argon environment, improving spectral signal-to-noise ratio and improving performance in the UV range.

Calibration Check : 316 stainless steel standard for automated calibration and wavelength scale validation.

Drift Correction : On-board automated drift correction software with factory-provided or user-provided reference materials.

Grade Library :  500+ grades, multi-library support, libraries may be added or edited.

Regulatory : CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions, subject to local LSO approval.

Spectral Range : 190 – 420 nm

Calibrations

Aluminum: Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Pb, Bi, Ag, Sn
Titanium Base: Al, Ti, V, Cr, Fe, Cu, Zr, Nb, Mo, Sn
LAS Base: C, Al, Si, Ti, V, Cr, Mn, Fe, Cu, Ni, Nb, Mo, Pb
Stainless Steels: C, Al, Si, Ti, V, Cr, Mn, Ni, Fe, Ni, Cu, Nb, Mo, W
Nickel Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W
Copper Base: Be, Al, Si, Cr, Mn, Fe, Ni, Cu, Zn, Ag, Sn, Pb, Bi
Cobalt Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W
Specialty Bases: Mg, V, Cr, Mn, Co, Zn, Zr, Nb, Mo, Ag, Sn, Hf, Ta, W, Re, Pb, Sn.

Security : Password protected; Multi-user support with configurable access settings

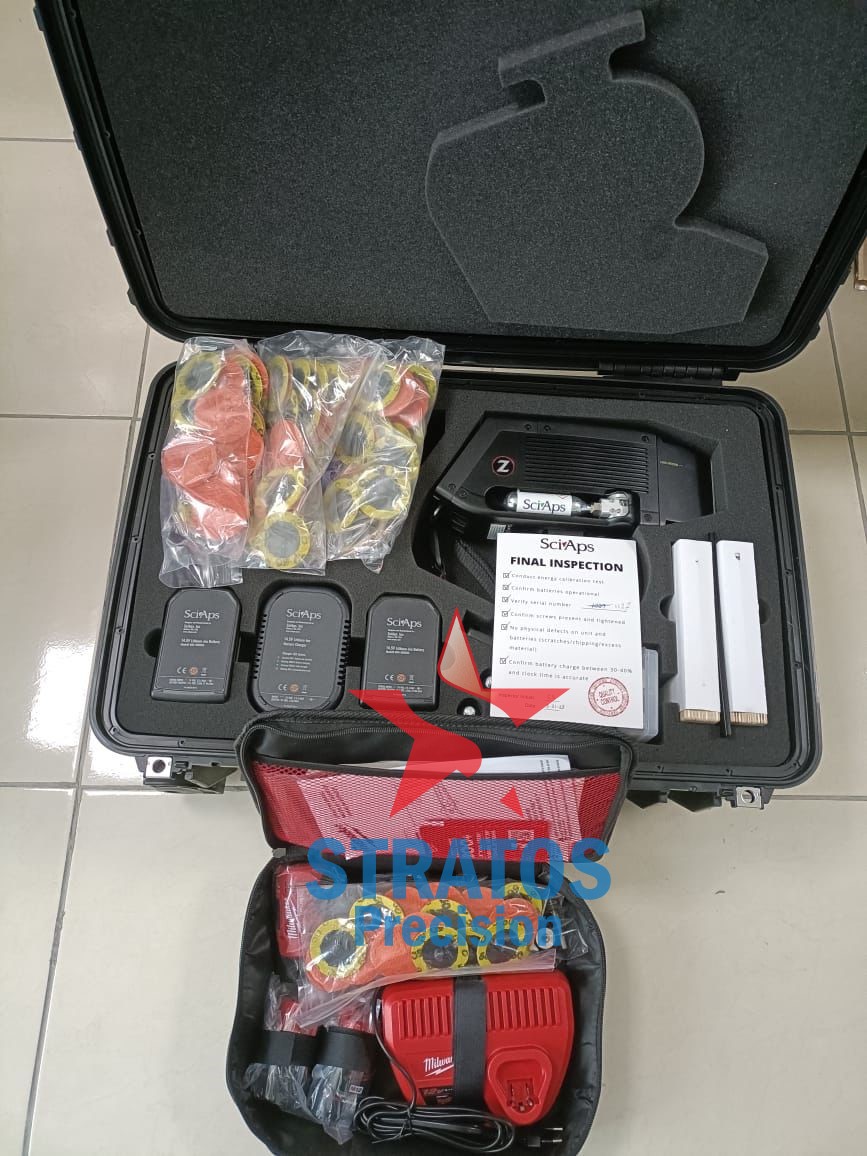

Package Includes:

- 1x Hard Sided Instrument Case
- 1x SciAps Z-902C+ Instrument with W rist L anyard
- 2x Li-ion B atteries
- 1x Battery Charging Dock
- 1x AC Power Adapter
- 1x USB-C to USB-A C able
- 1x Laser Safety Glasses OD 5+ for 1064 nm L aser
- Accessory Kit: a. 1x M2 Allen Wrench
                 b. 2x Replacement Splatter Shield
                 c. 1x USB Drive; with Calibration Certificate
                 d. Digital C opy of I nstrument M anual
                 e. Profile Builder Desktop Software (if included)
- Drift Correction Standards (configuration specific)
- 5x Argon Cylinders (applicable models only)
- Warranty Card
- Calibration Certificate
