For sale New Waygate Technologies Mentor Visual iQ Analyze VideoProbe with affordable price USD $16900.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


The Waygate Technologies Mentor Visual iQ VideoProbe is available in three customized platform configurations to meet inspection needs across industries and applications. Working through access passages, the Visual iQ system delivers high-resolution images of internal details of turbine engines, airframes, automotive engines, piping, vessels, wind turbine gear boxes, underwater structures, etc.

Probes come with a tip head guard to protect the threads, which is highly recommended for use without an optical tip. If you use the probe without the head guard or an optical tip you will damage the threads, which is costly to repair. Optical tips are sold separately.

Mentor Visual iQ Analyze

The Analyze model uses the same probes and interface as the Touch and takes the upgrades even further. In addition to the 32GB of internal memory and software you'll also automatically get the stereo, 3D phase, and 3D stereo measurement upgrades as well as the "Probability of Detection" upgrade, which includes:

- High-Dynamic Range (HDR)
- Adaptive Noise Reduction
- Distortion Correction
- Preset Image Transformations

All models of the Visual iQ come with a carrying case. You choose from the rolling carry-on version or the larger work station model that includes a pole mount handset holder and accessory storage pouch.


Features

- Crystal clear live video and still images
- 16GB of internal memory on the Inspect model
  32GB with the Touch & Analyze models
- 6.5 inch active matrix XGA color LCD display
- Dual-Band Wi-Fi and Bluetooth 4.0 enabled
- 212°F (100°C) max operating temp
- Rolling carry-on case or large work station model
- Compatible with USB keyboards & storage devices
  2 USB 3.0 host ‘A’ ports
  1 USB 3.0 client micro ‘B’ port
- IP65, MIL-STD-810G & MIL-STD-461F standards


Specifications:

Operating temperature
Tip : -25ºC to 100ºC (-13ºF to 212ºF). Reduced articulation below 0ºC (32ºF)
System : -20º to 46ºC (-4ºF to 115ºF). LCD may require warm-up period below 0ºC (32ºF)
Storage temperature : -25º to 60ºC (-13ºF to 140ºF)
Relative humidity : 95% max, non-condensing
Waterproof : Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2O, 33.5 ft of H2O)

Camera
Diameter probe : 4.0 mm (0.16”), 6.1 mm (0.24”), 6.2mm (0.24”), 8.4 mm (0.33”)
Image sensor : 1/6” Color Super HAD™ CCD camera (6.1, 8.4mm), 1/10” Color Super HAD™ CCD camera (3.9mm, 4.0mm, 6.2mm)
Pixel count : SD 3.9, 4.0, 6.1, 6.2, 8.4 mm - 440k pixels
              HD 6.1mm - 1200k pixels
Housing : Titanium

System
System dimensions : 17.1 x 19.7 x 38.1 cm (6.75 x 7.75 x 15”)
Case dimensions (standard) : Small standard case 35.0 x 54.5 x 23.0 cm (13.78 x 21.46 x 9.05”)
                             Large case 57.2 x 56.3 x 41.2 cm (22.52 x 22.16 x 16.22”)
System weight : In small case with contents: 10.2 kg (22.4 lbs). In large case with contents: 19.6 kg (43.2 lbs)
                Out of Case: 6120 system - 3.0 kg (6.7 lbs). 61100 system - 4.0 kg (8.7 lbs)
Construction : Magnesium and Polycarbonate housing with integrated elastomeric bumpers
Lcd monitor : Integrated (6.5”) active matrix XGA color LCD, daylight readable display, with optically bonded, multipoint capacitive Dragontrail™
               touchscreen (Touchscreen available only on Analyze and Touch models; pinch and zoom gesture support, on-screen radio and slider button activation)
Joystick control : 360º All-Way® tip articulation, menu access, and navigation
Button set : Access user functions, measurement, and digital functions
Audio : Compatible with bluetooth headset/microphone
Internal memory : 16 GB SSD for user storage (Internal memory only available on Analyze and Touch models)
Data i/o ports : Two USB 3.0 host ‘A’ ports, one USB 3.0 client micro ‘B’ port
Video out : DisplayPort
Brightness control : Auto and Variable
Illumination type : White LED
Long exposure : Auto – up to 16 seconds
White balance : Factory default or user defined

Power
Lithium ion battery : 10.8 V (nominal), 73 Wh, 6.8 Ah

Power supply
AC : 100-240 VAC, 50-60 Hz, <1.5 A RMS
DC : 18 V, 3.34 A

Standards compliance and classifications
MIL-STD-810G : United States Department of Defense Environment Tests Sections 501.5, 502.5, 506.5, 507.5, 509.5, 510.5, 511.5, 514.6, 516.6, 521.3
MIL-STD-461G : U.S. Department of Defense – Electromagnetic Compatibility with RE102, and RS103 – ABOVE DECK
Standards compliance : Group 1 Class A; EN61326-1, IEC CB Scheme, UL/EN/CSA-C22.2 61010-1, IEC 62133, UN/DOT T1-T8, EU RoHS 2, EU RED Directive, ISTA 2G
IP rating : IP65 (assembled), IP55 (disassembled)

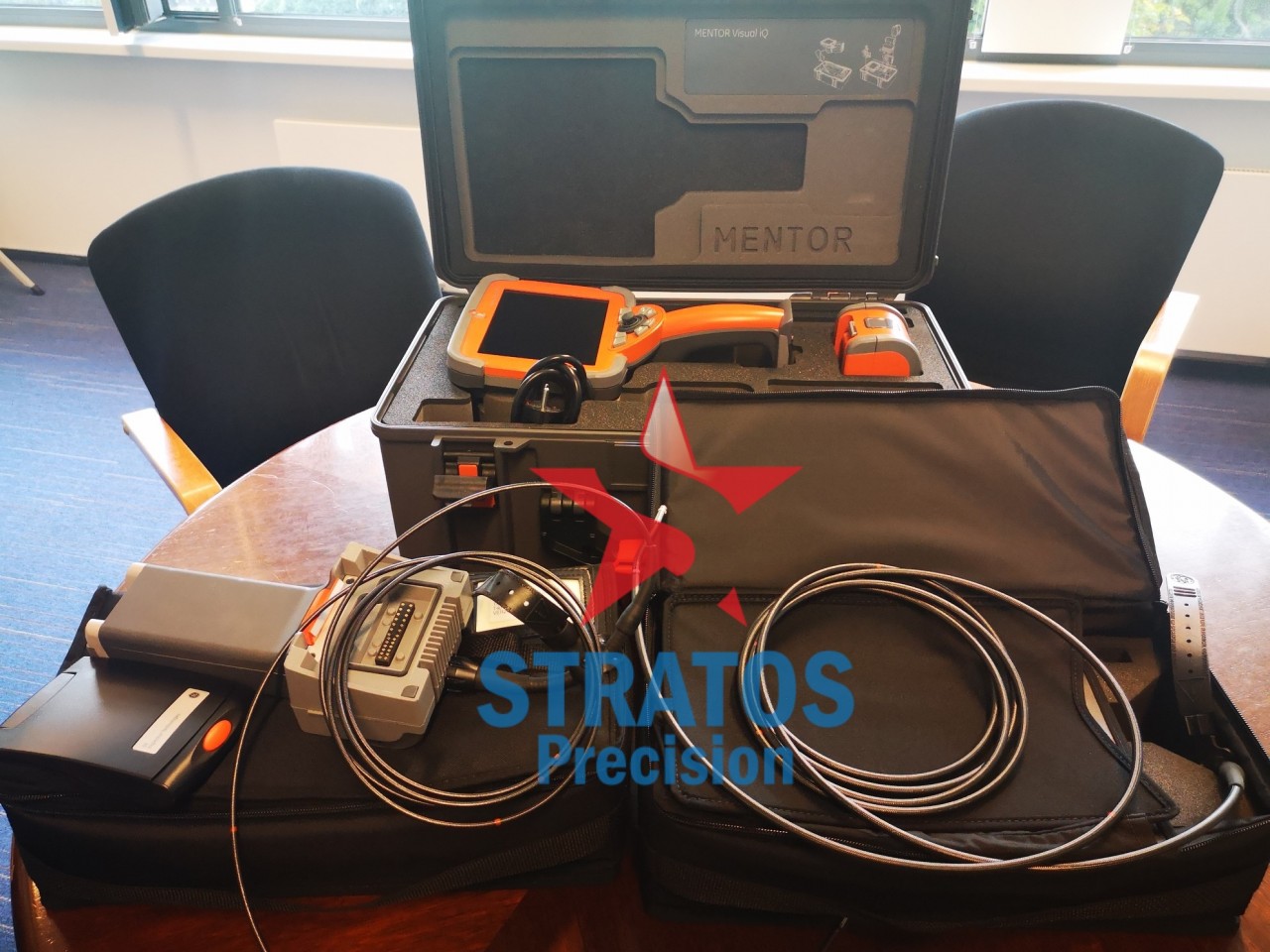

Package Includes:

- Waygate Technologies Mentor Visual iQ Analyze MVIQASYS3-CO
- MVIQABSA Borescope adapter
- MVIQHP6130 : HD 6,1mm X  3,0 m probe
- MVIQ-ST Software
- XLG3T61120FG Black 120 5-120 (.20-4.72)
- XLG3T6180FN Orange 80 3-20 (.12-.79)
- XLG3T6190FF Yellow 90 20-inf (.79-inf)
- T61120FF Gray 120 20-inf .79"-inf
- XLG3T61120SG Blue 120 4-100 (.16-3.94)
- XL4TM61105FG (forward version) Black 105 8-250 (.31-9.84)
- XLG3TM616060FGTT Black 60/60-FWD 4-80 (.16-3.15)
- Lithium Ion Battery 10.8 V (nominal), 73 Wh, 6.8 Ah, two-hour typical run time
- Visual iQ Storage Case
- AC Adapter/Battery
- Optical Tip Storage Case
- USB Thumbdrive Containing Documentation, including User's Manual
- Charger Safety and Essential Use Hard Copy
- Quickstart Card
- Warranty Card
- Calibration Certificate
