For sale New Olympus Vanta Element Handheld XRF Analyzer with affordable price USD $8490.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


The Vanta Element XRF analyzer series provides elemental analysis for fast alloy grade identification and sorting at an affordable price. The series is available in two cost-effective models:

- Vanta Element analyzer for affordable alloy ID
Use : Affordable alloy ID
Best for : Fast, basic analysis
Detector : PIN
Window : Thick Kapton® window
Excitation source : 2-watt X-ray tube with 35 kV tungsten (W) anode

Advanced XRF Analyzer Features
The Vanta Element series includes connectivity features to help streamline your scrap metal recycling and quality control processes.

Accurate and Repeatable Results
- Vanta electronics
- Axon Technology stability and count rate

Convenient Data Management
- Wireless connectivity (optional) for easy data transfer to a network folder
- Cloud data storage and real-time remote data viewing using the Olympus Scientific Cloud™
- Direct export to a USB drive
- 1 GB Industrial microSD™ card for storing results

Rugged, Affordable Handheld XRF
Built for demanding environments, the analyzer delivers a lower cost of ownership.

- IP54 rated for protection against dust and moisture
- Drop tested (MIL-STD-810G) to protect against falls and reduce the need for costly repairs
- Rated for continuous testing from -10 °C to 45 °C (14 °F to 113 °F)
- Stainless-steel faceplate for wear protection
- Easy, toolless window replacement


Specifications:

Dimensions (W x H x D) : 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.)
Weight : 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
Excitation Source : 2-watt X-ray tube with 35 kV tungsten anode
Primary Beam Filtration : Fixed aluminum filter
Detector : Silicon PIN detector
Power : Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display : 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment : Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle
                        Humidity: 10% to 90% relative humidity noncondensing
Drop Test : Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter : IP54: dust protected and protected against water splashing from all directions
Operating System : Linux®
Data Storage : microSD™ slot with removable 1 GB Industrial SD card included
USB : Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
      One USB 2.0 type mini-B port for connection to computer.
Wireless LAN : Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor
Bluetooth : Supports Bluetooth® with an optional USB adaptor
Warranty : One-year warranty
Optional Accessories : Field Stand, Soil Foot, and Holster

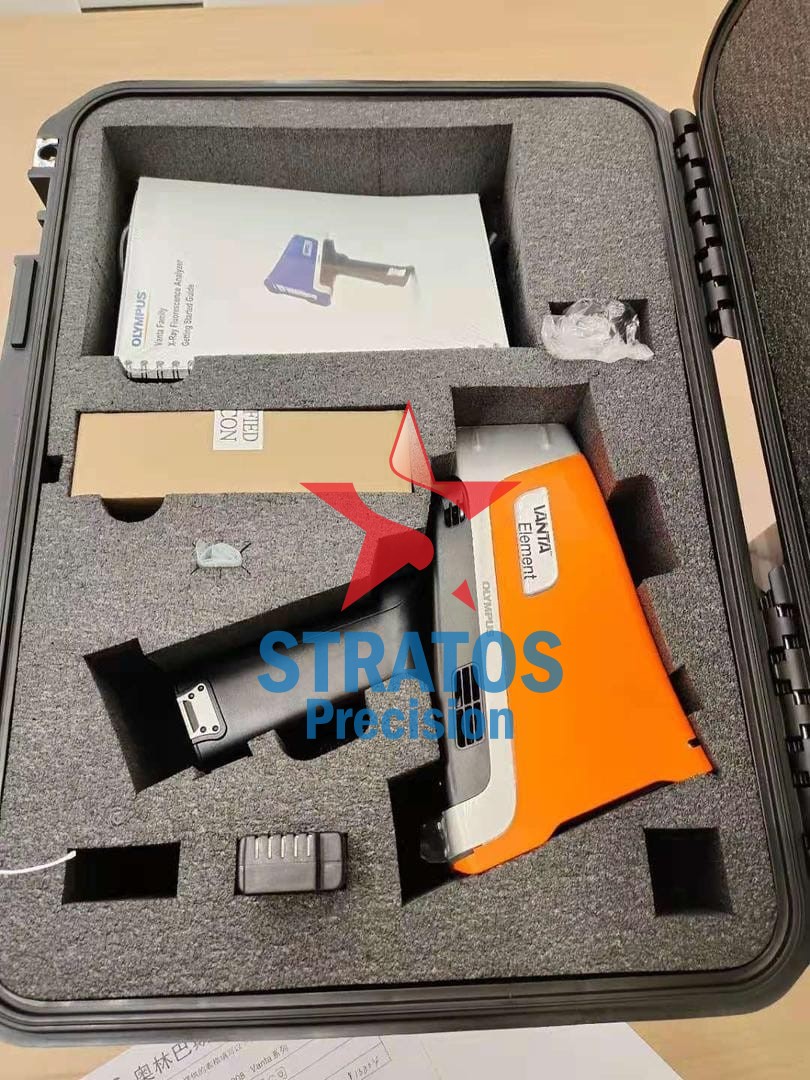

Package includes:

- Olympus Vanta Element
- 2 Lithium Ion Batteries
- Charger and AC Adapter Cable
- Docking/Calibration Stand
- USB Drive
- Hard Transport Case
- User's Manual
- Warranty Card
- Calibration Certificate
