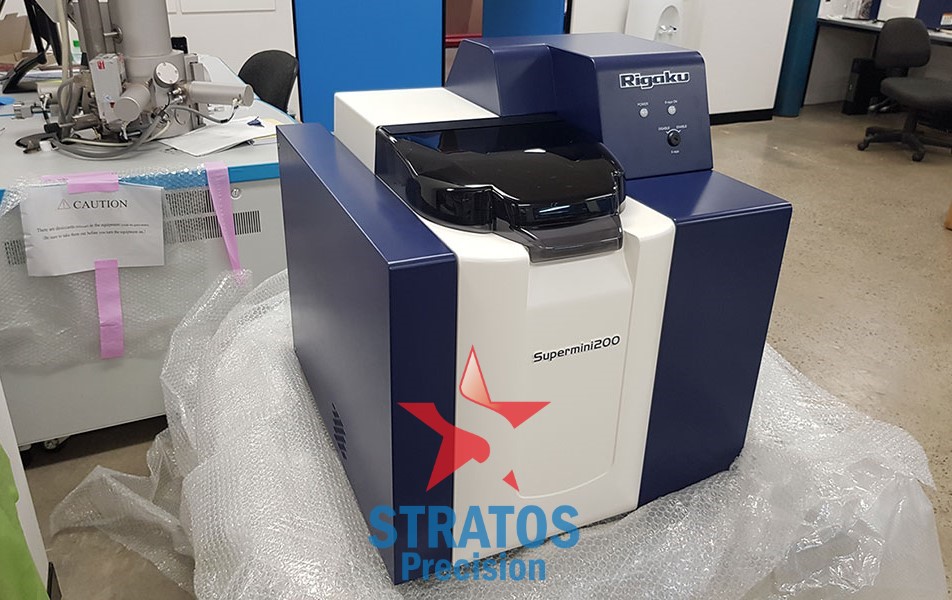

For sale New Rigaku Supermini200 Benchtop WDXRF Spectrometer with affordable price USD $7900.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


The new Supermini200 has improved software capabilities as well as a better footprint. As the world's only high-power benchtop sequential wavelength dispersive X-ray fluorescence (WDXRF) spectrometer for elemental analysis of oxygen (O) through uranium (U) of almost any material, the Rigaku Supermini200 uniquely delivers low cost-of-ownership (COA) with high resolution and lower limits-of-detection (LLD).

Features

- Analyze fluorine through uranium (F - U)
- Analyze: solids, liquids, powders, alloys and thin films
- Atmosphere: air, helium or vacuum
- X-ray tube: 50 kV, 200 W Pd-anode
- Primary beam filter: Zr is standard; Al optional
- Detectors: F-PC and scintillation
- Crystals: 3-position changer
- Autosampler: 12-position standard
- Vacuum: rotary pump standard
- Power: 100 - 120V (50/60 Hz) 15A or 200 - 240V (50/60 Hz) 10A

Specifications:

Elemental coverage : Oxygen (O) through uranium (U)
X-ray tube : Pd target
X-ray power : 200 W
Generator : 50 kV, 4 mA
Cooling : Air cooled
Beam filter : Programmable
              Zr standard
              Al optional
Crystals : LiF(200) and PET standard
           RX25 and Ge optional
Detectors : Flow proportional counter
            Scintillation counter
Sample size : 44 mm diameter maximum
              33 mm height maximum
Auto-sampler : 12-position turret
Sample spinner : Standard, 30 rpm
Atmosphere : Vacuum standard
             Helium optional
Vacuum pump : Rotary pump
Helium flush : 15 – 65 PSIG, 0.5 l/min
Environment : 15 – 28°C temperature
              <75% relative humidity
Power supply : 100 – 120V (50/60 Hz) 15A
               or 200 – 240V (50/60 Hz) 10A


Software

Operating system : Windows® 7
Options : SQX software with FP
              Matching library
              SQX scatter FP method
              Fused bead correction
              Line Overlap Correction using Theoretical Intensities (LOCTI)
             Quant scatter FP


Dimensions and mass

Width : 580 mm
Depth : 680 mm
Height : 670 mm
Weight : 100 kg
Vacuum pump : 170 mm (W) x 500 mm (D) x 310 mm (H), 28 kg



Package Includes:

- (1) Rigaku Supermini200 unit
- (3) Reference metal disks (Cu, Ti and Al)
- (1) F-PC window 0.6μm PE
- (1) Tool set
- (1) Grease PHA adjustment sample
- (1) set of paper manuals
- (1) CD-R of manual set
- (1) Warranty Card
