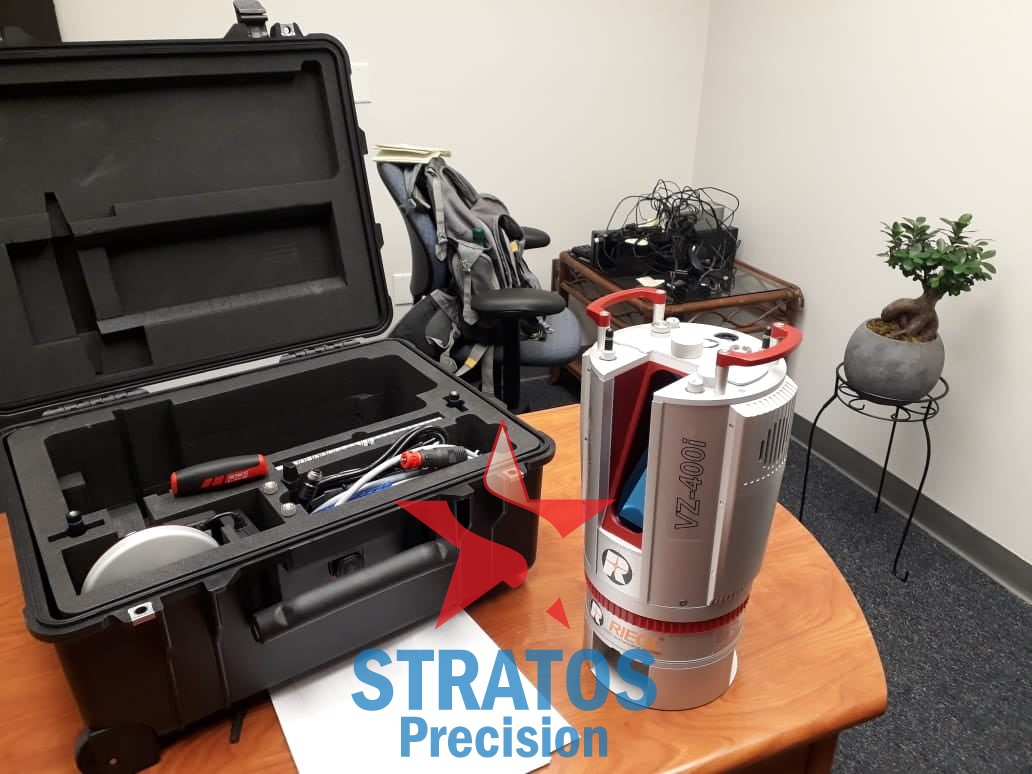

For sale New RIEGL VZ-400i 3D Laser Scanner with affordable price USD $12500.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


RIEGL VZ-400i Features:
- New, innovative processing architecture for data acquisition and simultaneous geo-referencing, filtering and analysis in real-time
- Cloud connectivity via Wi-Fi and 4G LTE
- High laser pulse repetition rate of up to 1.2 MHz
- Eye safe operation at Laser Class 1
- Wide field of view, 100°x360°
- High-speed data acquisition up to 500,000 measurements/sec
- Range up to 800 m, accuracy 5 mm
- High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing
- Multiple target capability for an unlimited number of target echoes
- Optional full waveform data output
- User-friendly touchscreen interface
- MEMS IMU for pose estimation


RIEGL VZ-400i Laser Specifications:

- 1.2 MHz laser pulse repetition rate
- 5 mm accuracy
- 3 mm precision
- 800 m range
- 1.5 m minimum range
- Field of view: 100° vertical / 360° horizontal
- Eye safe operation at Laser Class 1
- Main dimensions: 260 mm (w) x 308 mm (h)
- Weight: 9.7 kg


RIEGL VZ-400i Applications:

- Transportation
- Surveying
- Architecture & Facade Measurements
- As-Built Surveying
- Archaeology & Cultural Heritage
- City Modeling
- Tunnel Surveying
- Civil Engineering
- Forestry
- Monitoring
- Research
- Topography



Package includes:

- Riegl VZ-400 laser scanner (time of flight, up to 122,000 measurements/second or 600m (1960 feet) range, 5mm accuracy, 3 mm precision
- TCP/IP Cable M12-M12, 3M
- TCP/IP Cable M12-RJ45, 0.3M
- Serial data and PPS cable to GPS Receiver, 3M
- Power Supply Cable, 2POLE/7POLE, 3M
- Adapter Cable, 1M from power supply cable to cigarette lighter plug
- Adapter Cable, 1M from 7 pole supply cable with crocodile battery pole connectors
- Tripod Adapter Plate
- Riscan Pro Viewer, Acquisition & Processing Software
- Scanner Carry Case

Camera:

- Nikon D700 12MP Camera - top mount and calibrated for this scanner
- Nikon Lens AF D 20mm 2.8 Nikkor
- 5 GIG compact flash memory card
- Lens Adapter & Protection Tube
- High Precision Camera Mount (Detachable)
- Carry case for camera, lenses, camera mount, cables, and adapter

Camera Module:

- License RiSCAN PRO Plug-in Camera Module
- REFLECTIVE TARGET PACK: (approx. 300) 50mm stick-on targets and (12) 100mm cylinder targets

MISC :

- AC power supply unit and Manuals
