For sale USED CONDITION FARO Focus 3D X330 Laser Scanner with affordable price USD $4000.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


Building on the success of the Focus3D, the new Focus3D X 330 surpasses previous models in functionality and performance. With a range almost three times greater than previous models, the Focus3D X 330 can scan objects up to 330 meters away and  in  direct  sunlight.  With  its  integrated  GPS  receiver,  the  laser  scanner  is  able  to  correlate  individual  scans  in  post-processing making it ideal for surveying based applications.In  addition,  the  Focus3D  X  330  scan  quality  has  been  increased  and  noise  has  been  reduced,  providing  precise  three  dimensional models in a photo-realistic style. These advances in performance did not come at the expense of safety as the Focus3D X 330 includes a Class 1 “eye safe” laser.With its increased range and scan quality, the Focus3D X 330 considerably reduces the effort involved in measuring and post-processing.
The 3D scan data can easily be imported into all commonly used software solutions for accident reconstruction, architecture, civil engineering, construction, forensics, industrial manufacturing and land surveying. Distance dimensions, area and volume calculations, analysis and inspection tasks and documentation can thus be carried out quickly, precisely and reliably.


Features:

Extended Scanning - 330m RangeThe Focus3D X 330 can scan objects up to 330 meters away. Large buildings, land-site excavations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion.

Easy Positioning - Integrated GPS ReceiverWith its integrated GPS receiver, the laserscanner is able to correlate individual scans inpost-processing making it ideal for surveyingbased applications.

Outdoor Scanning Capability - The Focus3D X 330 now is able to perform fast and highly precise scanning in direct sunlight.

Low Noise Performance - The Focus3D X 330 delivers extraordinary scan data quality with very low noise.

Compass - An electronic compass is included within the unit to associate directional data to your scans and facilitate the auto-registration process.

Height Sensor (Altimeter) - Each scan includes height information which can be used to scan different floor levels in a building. The data can then be used to differentiate the floors.

Dual Axis Compensator - To minimize the number of targets needed, the dual axis compensator enables every scan to have integrated level information.

WLAN (WiFi) - WLAN remote control allows starting, stopping, viewing or downloading of scans at a distance.


Specifications:

Range Focus3D X 330 : 0.6 – 330m
Measurement speed : up to 976,000 points/second
Ranging error2 : ± 2mm
Ranging noise : @10m – raw data: 0.3mm @90 % refl.
                          @25m – raw data: 0.3mm @90 % refl.
                          @10m – raw data: 0.4mm @10 % refl.
                          @25m – raw data: 0.5mm @10 % refl.
Integr. colour camera : Up to 70 mio. pixel
Laser class : Laser class 1
Weight : 5kg
Multi-Sensor : GPS, Compass, Height Sensor,
               Dual Axis Compensator
Size : 240 x 200 x 100mm
Scanner control : via touchscreen display and WLAN

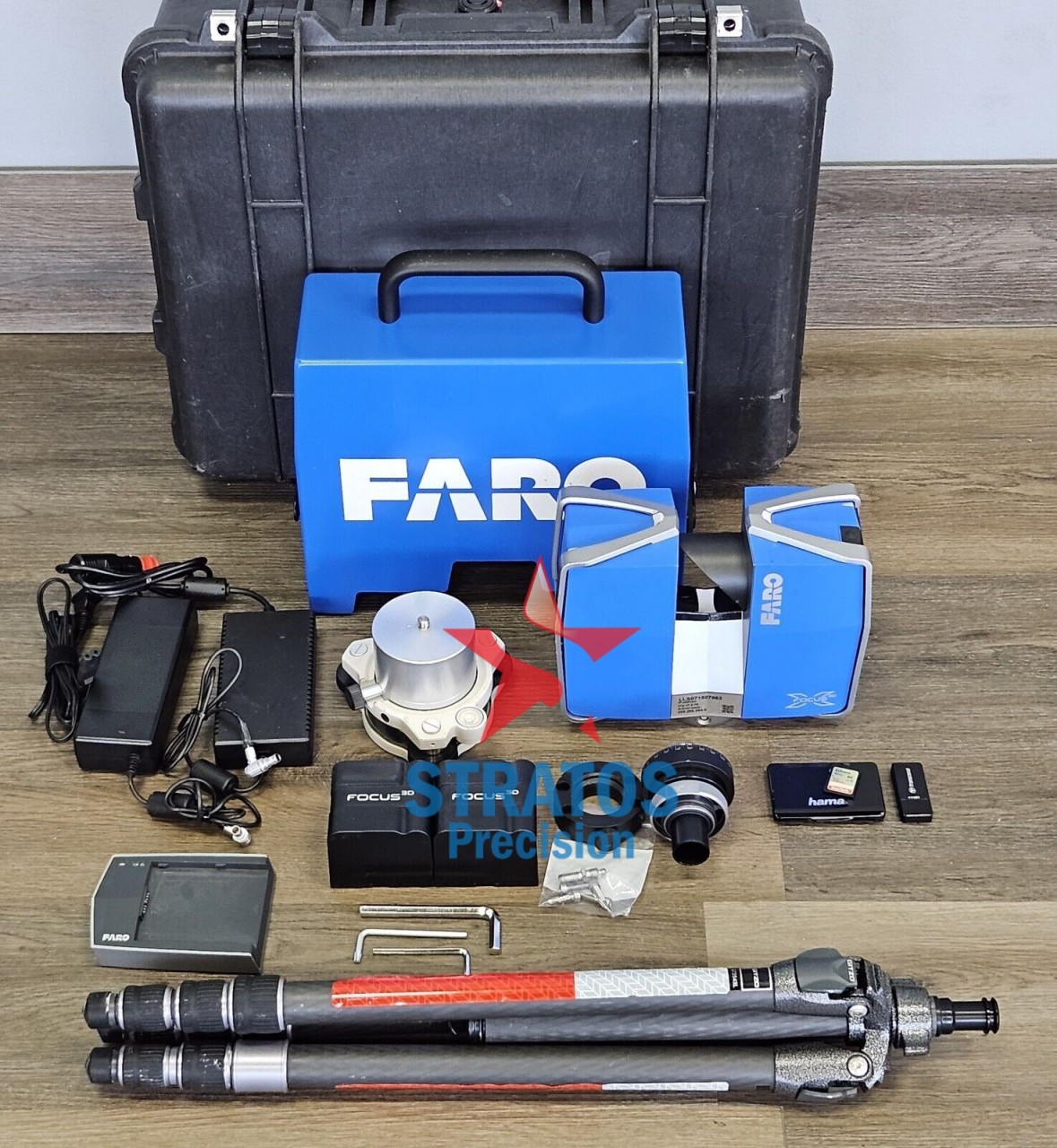

Package includes:

- Focus3D-X330 Laser Scanner
- 2x PowerBlock battery
- Power Dock
- 16GB Memory Card
- SD card reader
- SD card
- Cover
- Optical cleaning set
- Quick charge power supply
- Car power supply
- Tribrach with multiple adapters
- Ruggedized protection and transport cover in aluminium
- Panorama Quick Release
- Rugged transport case with wheels
- Gitzo Carbon fiber Tripod
- License SCENE software
- 1 year maintenance contract for SCENE software
- Calibration Certificate
