For sale New FARO Focus Premium 350 Laser Scanner with affordable price USD $23900.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


The FARO Focus Premium Laser Scanner is a next-generation reality capture device that delivers faster scans and better results - up to 50% faster than the FARO Focus.
Capturing the measurements of a large building, facility, or crash/crime scene with conventional documentation methods can take days or weeks, and even then, the data might contain errors or missing details. But FARO Focus Premium creates accurate, complete and photorealistic 3D representations of any environment or object in just a few minutes. Focus Premium is easy to operate and offers built-in protection from dirt, dust, fog, rain and heat/ cold.

And, for best on-site data capture, Focus Premium connects with the new FARO Stream app, bridging FARO hardware to the FARO Sphere cloud environment. Pre-registration scans are fed directly into the cloud, so jobs can be done more efficiently — feedback is captured and processed as you work.


Up to 50% faster scan times

About 1 minute to complete a typical scan, in combination with the optional FARO PanoCam upgrade, even in color.

Super-High Color Resolution

The latest color technology enables the Focus Premium to capture scans with up to 266 megapixel color information.

Two-Year warranty

Competitive service means maximizing the life of this product while reducing the total cost of ownership throughout the device’s lifespan. Two years allows for maximum flexibility and the piece of mind knowing that any repairs or defective parts will be replaced.

Software Compatibility

Process your Focus Laser Scanner point cloud data with any software tool that fits your workflow, including FARO software solutions and third-party software such as Autodesk® ReCap™.

Multiple Point Clouds, Multiple Devices

The new Focus is also designed to work seamlessly with the FARO Freestyle 2 Handheld Scanner, thanks to its “Snap-In” feature. Save the time that is required for multiple scanner positions when it comes to scanning complex environments/structures, equipment or tight spaces. Snap-in enables the user to seamlessly add data starting from a Focus point cloud by using it as a reference for missing data from such hard-to-scan locations, including areas in shadow and objects with irregular geometries.


Features & Benefits

- Up to 350m scanning range, leading to superior area coverage per scan position (Premium 350 option required)
- Smartphone-enabled remote control capabilities, limited only by the range of a Wi-Fi network
- Improved wireless workflow with more stable and faster Wi-Fi operation
- On-site registration, the process of combining multiple scans using common overlap, means faster project completion and real-time awareness of scan errors or missing data
- Seamless connectivity with Stream and Sphere
- Scanner control can be executed on either the app or on the actual Focus
- Users have easy access to create projects, change scanner settings, manage image resolution, opt for color or black and white scans, group scans through clustering, and add annotations
- Rugged construction and housing can withstand the tough day-to-day work
- Integrated high-speed SSD data storage for maximum scan capacity and lighting fast scan processing


Specifications:

PERFORMANCE;

Unambiguity Interval : 614 m for up to 0.5 MPts/sec
                                  307 m at 1 MPts/sec
                                  153 m at 2 MPts/sec
White, 90% Reflectivity : 0.5 – 350 m
Dark-grey, 10% Reflectivity : 0.5 – 150 m
Black, 2% Reflectivity : 0.5 – 50 m
White, 90% Reflectivity : 0.1 mm @ 10 m, 0.2 mm @ 25 m
Dark-grey, 10% Reflectivity : 0.3 mm @ 10 m, 0.4 mm @ 25 m
Black, 2% Reflectivity :  0.7 mm @ 10 m, 1.2 mm @ 25 m
Max Speed : Up to 2 MPts/sec
3D Accuracy : 2 mm @ 10 m, 3.5 mm @ 25 m
Ranging Error : ±1 mm
Angular Accuracy : 19 arcsec
Laser HDR : Yes
Temperature Range : Operating: +5 ° to +40 °C, Extended Operating: -20 ° to +55 °C, Storage: -10 ° to +60 °C

COLOR UNIT;

Color Resolution : Up to 266 MPx color
Raw Color Resolution : 867 MPx
HDR Camera : 13 MPx - 2x, 3x, 5x brackets
Parallax : Minimized due to co-axial design

DEFLECTION UNIT;

Field of View : 300° vertical8 / 360° horizontal
Step Size : 0.009° (40,960 Pts on 360°) vertical / 0.009° (40,960 Pts on 360°) horizontal
Max. Scan Speed : 97 Hz (vertical)

LASER (Optical Transmitter);

Laser Class Laser : Class 1
Wavelength : 1553.5 nm
Beam Divergence : 0.3 mrad (1/e)
Beam Diameter at Exit : 2.12 mm (1/e)

DATA HANDLING AND CONTROL;

Data Storage : SATA 3.0 SSD 128 GB and SDXC™ V30 64 GB SD Card; SD3.0, UHS-I / SDXC™ / SDHC™, max. 512 GB
Scanner Control : Via touch screen display and WLAN connection, Control by FARO Stream App (iOS & Android) or mobile devices with HTML5

INTERFACE CONNECTION;

WLAN : IEEE 802.11 ac/a/b/g/n 2x2 MIMO, as access point or client in existing networks (2.4 and 5 GHz)
USB : USB 3 port

ADDITIONAL FEATURES;

Dual Axis Compensator : Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°
Height Sensor : Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass : The electronic compass gives the scan an orientation
GNSS : Integrated GPS & GLONASS
On-Site Compensation : Creates current quality report and improves compensation automatically
Accessory Bay : The accessory bay connects versatile accessories to the scanner
Inverse Mounting : Yes
Real-time, On-site Registration : Stream App real-time scan streaming, registration, overview map and Sphere cloud upload
Electronic Automation Interface : Available as option, only at point of sale
Digital Hash Function : Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets : Defined areas recaptured in higher resolution at a greater distance
Retake Photos : Select individual photographs with unwanted objects and retake them

GENERAL SPECIFICATIONS;

Power Supply : 19 V (external supply), 14.4 V (internal battery)
Typical Power Consumption : 19 W idle, 32 W scanning, 72 W charging
Typical Battery Operation Time : About 4 hours
Typical Scan Time : About 1 min
Ingress Protection (IP) Rating Class : 54
Humidity : Non-condensing
Weight : 4.4 kg (including battery)
Size/Dimensions : 230 x 183 x 103 mm
Calibration Recommended : annually
Manufacturer Warranty : 2 years


Package Includes:

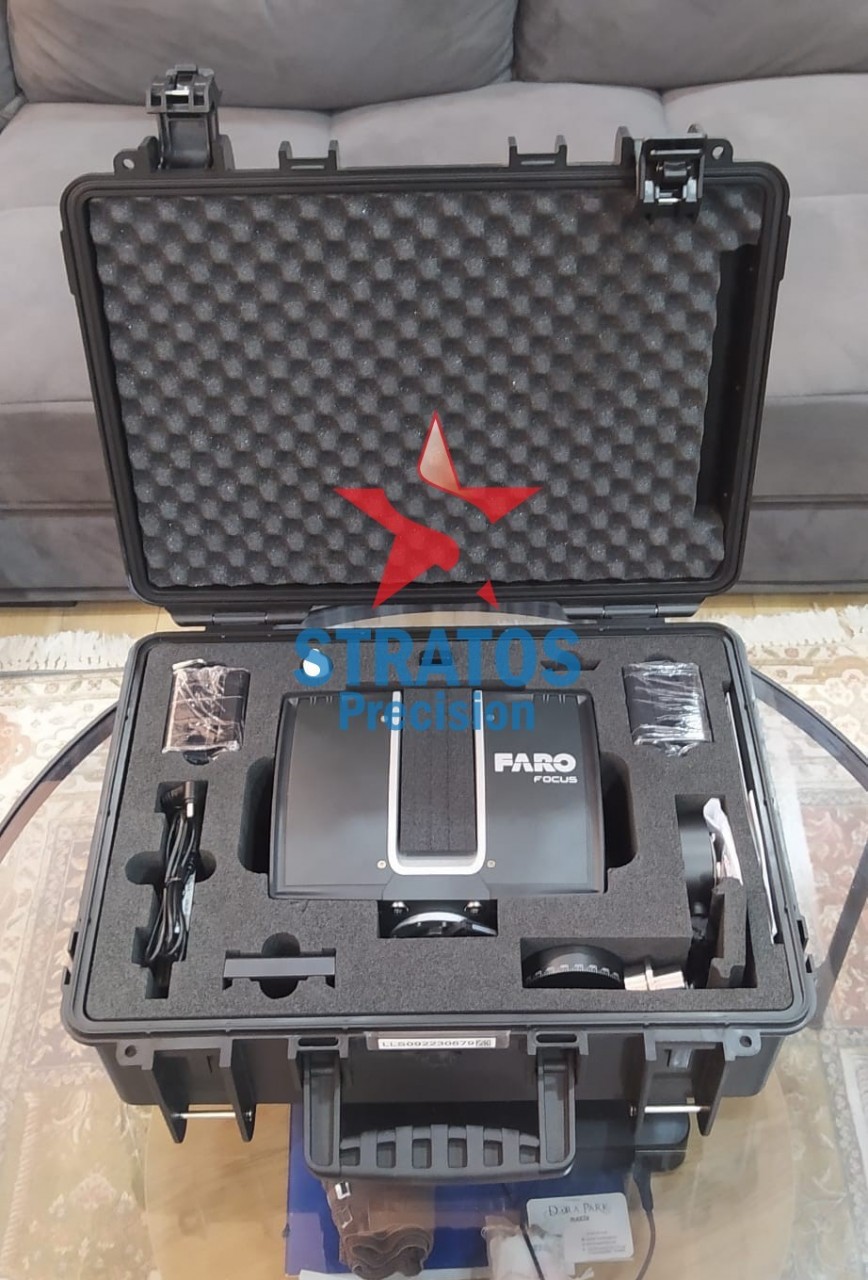

- (1) FARO Focus Premium 350 unit
- (1) SCENE Software
- (1) Power dock battery charger
- (1) Power supply unit
- (1) Power block battery (ACCS-PWR-0014)
- (1) Scanner transport and carrying case
- (1) Mirror cleaning liquid for optics
- (1) SD card reader (An SD card is already inserted in the scanner.)
- (1) Status indicator
- (1) Laser scanner
- (1) 4mm hex key
- (1) Quick release
- (1) Quick Start Guide and Safety Manual
- (1) AC power cable
- (1) 2 Years Warranty Card
