For sale USED CONDITION FARO Focus S350 Laser Scanner with affordable price USD $6000.00. Please contact us for ordering information. All prices are subject to change without notice, except that prices for an order that have been accepted.


ACCURACY : The FocusS now captures environments with increased accuracy regarding distance, dual-axis compensator and angular measurement.
TEMPERATURE : Extended temperature range allows scanning in challenging environments - take your FocusS to the desert or run a project in Antarctica.
ON-SITE COMPENSATION : With the on-site compensation functionality users can verify and adjust the Focus S compensation on-site or in the office, ensuring the highest scan data quality. A comprehensive compensation document is automatically generated.
IP RATING - CLASS 54 : With the sealed design, the FocusS is certified with the industry standard Ingress Protection (IP) Rating and classified in class 54 against environmental influences.
HDR PHOTO OVERLAY : The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients.
ACCESSORY BAY : With this future-proof interface users can connect additional accessories to the scanner, which offers an option for user specific customization.


BENEFITS

Scanning in rough environments while providing protection from dust, debris and water splashes

Confident data quality through the on-site compensation

Reality-like scan data by increased distance accuracy and angular accuracy

Future-proof investment and expandability due to the integrated accessory bay

Easy handling of scanner control through its large and luminous touchscreen


SPECIFICATIONS:

Ranging unit

Unambiguity interval : 614m for 122 to 488 kpts/s
                      307m for 976 kpts/s
Measurement speed (pts/sec) : 122,000 / 244,000 / 488,000 /
                             976,000
Ranging error4 : ±1mm
Angular accuracy5 : 19 arcsec for vertical/horizontal angles
3D position accuracy6 : 10m: 2mm / 25m: 3.5mm

Range

90% Reflectivity (white) : 0.6-350m
10% Reflectivity (dark-gray) : 0.6-150m
2% Reflectivity (black) : 0.6-50m

Range Noise (mm)

@10m 90% (white) : 0.3
@10m 10% (dark-gray) : 0.4
@10m 2% (black) : 1.3
@25m 90% (white) : 0.3
@25m 10% (dark-gray) : 0.5
@25m 2% (black) : 2.0
Max. Measurement Speed (mil. pts/sec) : Up to 1
Ranging Error (mm) : ±1
Angular Accuracy : 19 arcsec for vertical/horizontal angles
3D Point Accuracy : 2 @10m 3.5 @25m

Color unit

Resolution : Up to 165 megapixel color
High Dynamic Range (HDR) : Exposure Bracketing 2x, 3x, 5x
Parallax : Minimized due to co-axial design

Deflection unit

Field of view (vertical7/horizontal) : 300° / 360°
Step size (vertical/horizontal) : 0.009° (40,960 3D-Pixel on 360°) /
                                  0.009° (40,960 3D-Pixel on 360°)
Max. vertical scan speed : 97Hz

Laser (optical transmitter)

Laser class : Laser class 1
Wavelength : 1550nm
Beam divergence : 0.3mrad (1/e)
Beam diameter at exit : 2.12mm (1/e)

Data handling and control

Data storage : SD, SDHC™, SDXC™; 32GB card
Scanner control : Via touchscreen display and WLAN connection. Accsess by mobile devices with HTML5

Interface Connection

WLAN : 802.11n (150Mbit/s), as Access Point or client in existing networks

Integrated Sensors

Dual axis compensator : Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°
Height sensor : Via an electronic barometer the height relative to a fixed point can be detected and added to a scan.
Compass8 : The electronic compass gives the scan an orientation.
GNNS : Integrated GPS & GLONASS

On-site Compensation : Creates a current quality report and provides the option to improve the devices compensation automatically.

Accessory Bay : The accessory bay is located on top of the laser scanner and is used to connect versatile accessories to the scanner.

GENERAL

Power supply voltage : 19V (external supply)
                       14.4V (internal battery)
Power consumption : 15W idle, 25W scanning,
                    80W charging
Battery service life : 4.5 hours
Operating temperature : 5° - 40°C
Extended operating temperature9 : -20° - 55°C
Storage temperature : -10° - 60°C
Ingress Protection : IP54
Humidity : Non-condensing
Weight incl. battery : 4.2kg
Size : 230 x 183 x 103mm
Maintenance / calibration : Annual

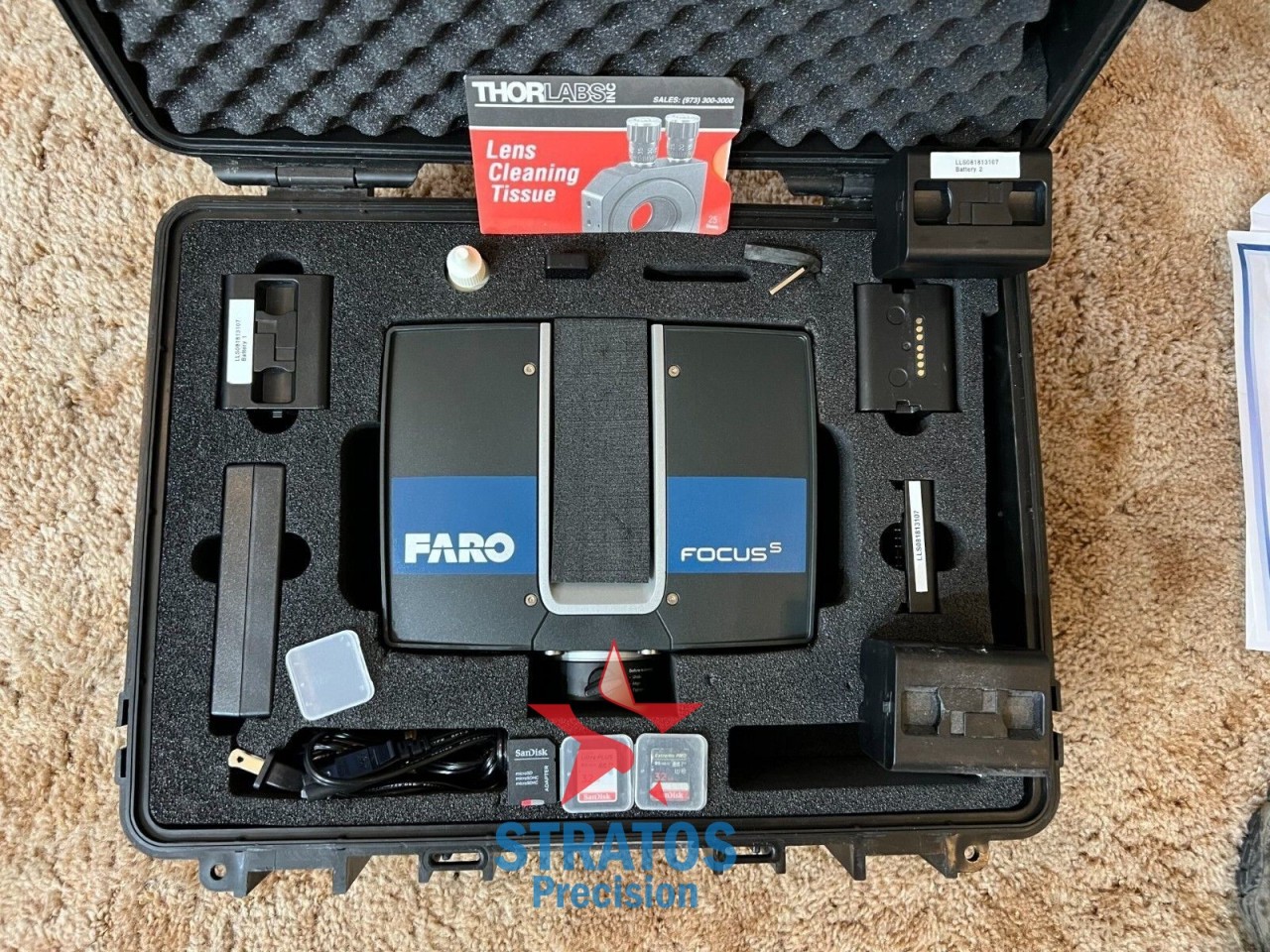

Package includes:

- 1 x Faro Focus S350 Laser Scanner
- 1 x Faro Focus Pelican Case
- 4 x Faro Power Block
- 1 x Faro Power Dock
- 1 x Faro Standard Power Supply
- 3 x Faro SD Card, 32GB
- 1 x Faro SD Card Case
- 1 x Faro SD Card Reader, Focus3D
- 1 x Faro Quick Release S Series
- 1 x Gitzo Laser Scanner Carbon Tripod for FARO Focus
- 1 x Koppa Spheres 139mm (5) in Koppa transport case
- 1 x Koppa Spheres 80mm (11) in Koppa transport case
- Warranty Card
- Calibration Certificate
